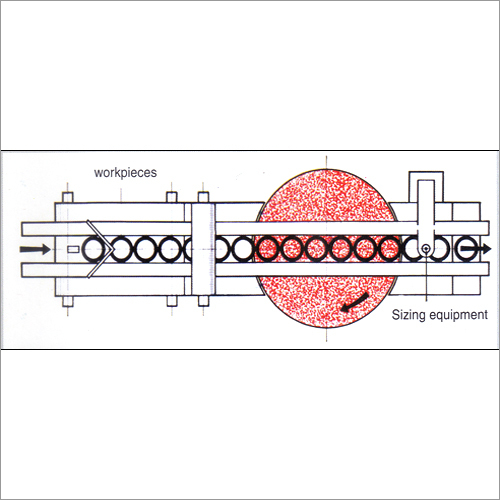

We are acknowledged in providing a broad variety of Through Feed Duplex Grinding Machine. It is fabricated with finest grade of resource to ensure a long lasting and smooth performance. Additionally, provided machine is suitable for engineering and industrial sectors. Through Feed Duplex Grinding Machine is easy to installed and used for multipurpose applications. It has a high functionality to maintain for a longer time. It is inserted with dynamic motor system which can easily replace.
Model Name/Number | JBIDG01960 |
Maximum Grinding Diameter | 100 MM |
Grinding Wheel Size | 350MM |
Technical Specification
Sr No |
Aspects |
Unit |
Dimension |
1 |
Grinding Wheel Diameter |
mm |
350 |
2. |
Gap between grinding wheels |
mm |
1 to 50 |
3. |
Quill adjustment travel, each time |
mm |
50 |
4. |
Grinding Wheel Dimensions |
mm |
350 OD x 110 ID x 55 Width |
5. |
Power requirement total |
kw |
8.6 |
6. |
Aprox |
hp |
11.75 |
7. |
Net weight approx |
kg |
1200 |
8. |
Work piece Diameter |
mm |
10 to 100 |
9. |
Work piece thickness |
mm |
1.50 to 50 |
10. |
Maximum error in parallelism |
mm |
0.005 |
11. |
Maximum error in Flatness |
mm |
0.005 |
